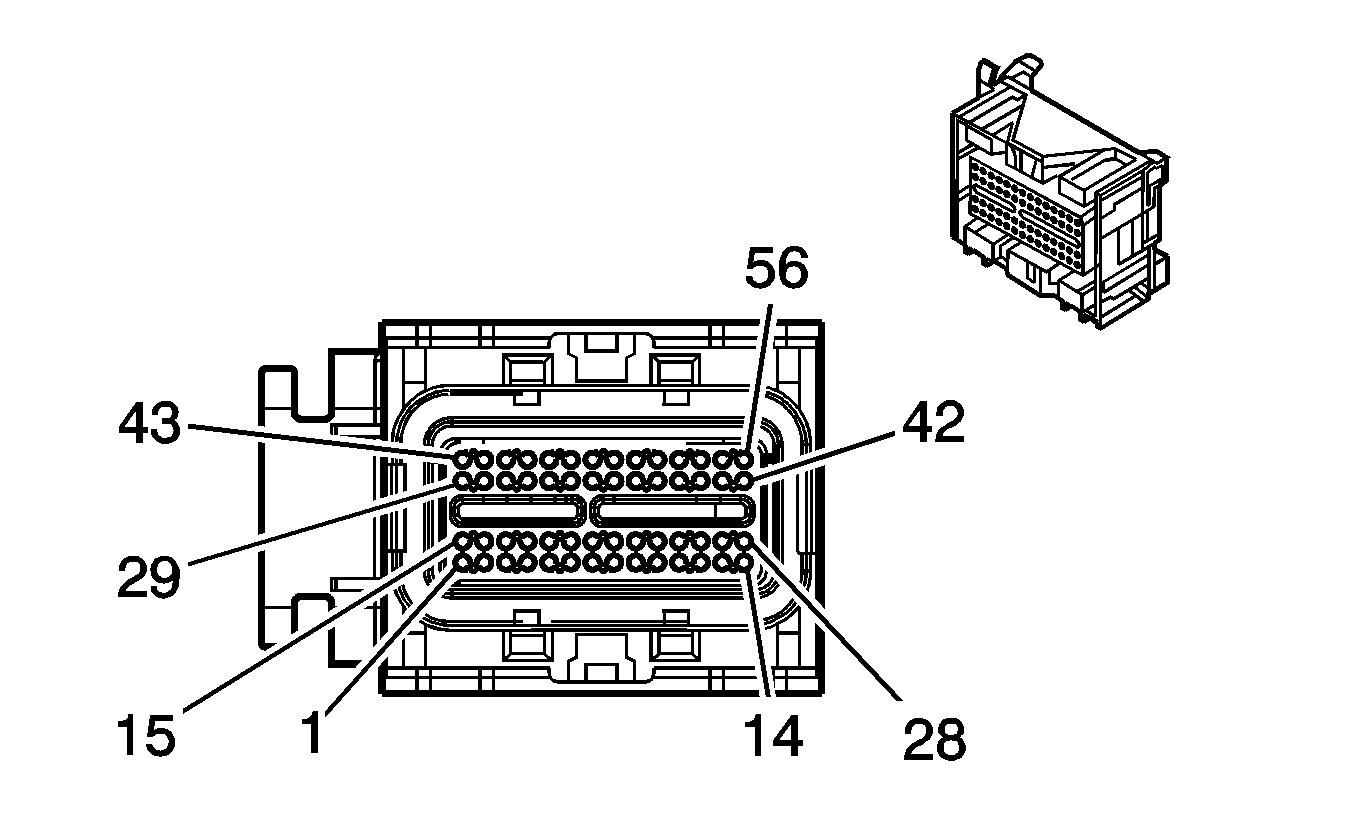

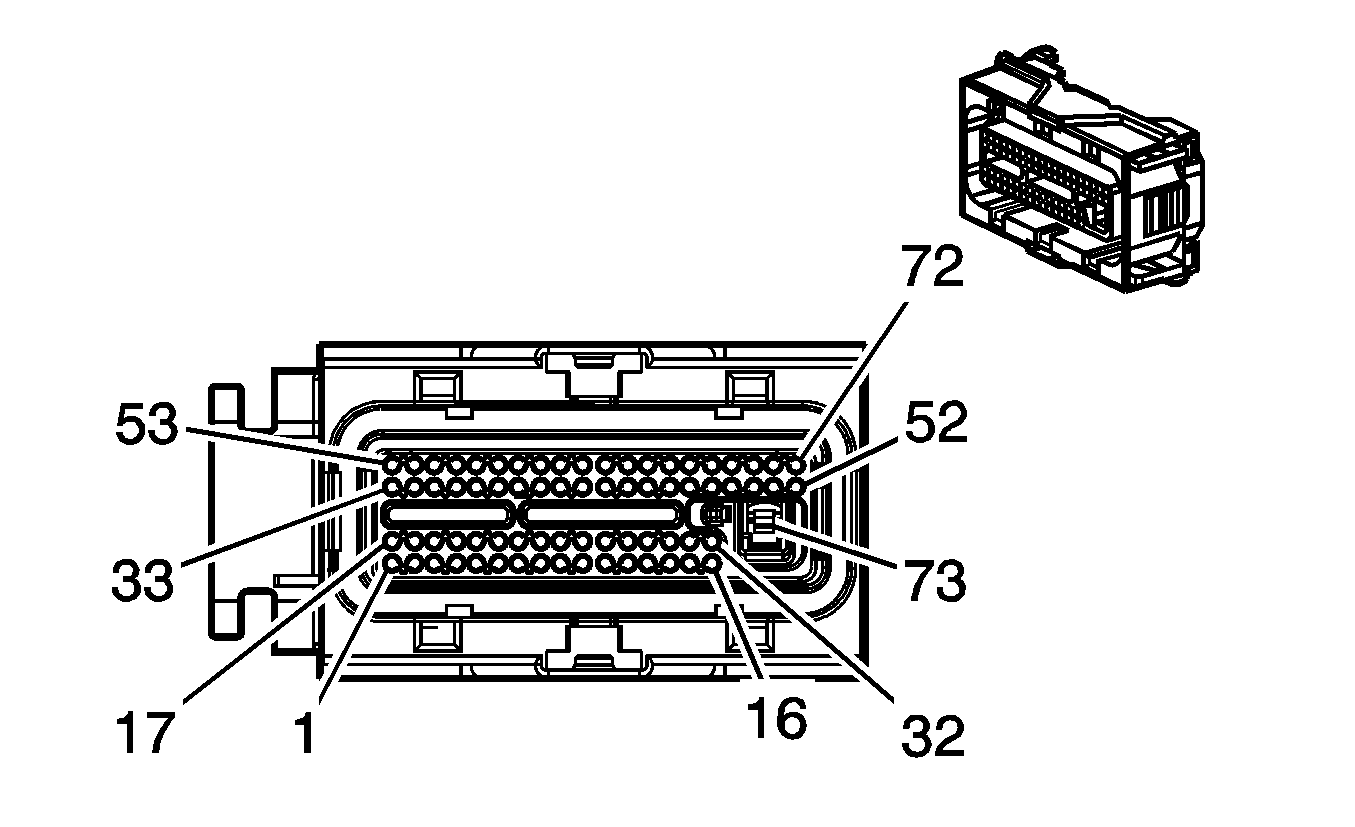

Powertrain Control Module (PCM) C1
Connector Part Information
| • | 15357150 |
| • | 56-Way F Micro-Pack 064 Series (BLU) |
Pin
Wire Color
Circuit No.
Function
1-3
--
--
Not Used
4
PPL
420
TCC Release/ A/T Shift Lock Release Signal (MXO w/o K34) or TCC Release/ A/T Shift Lock Release/ Cruise Control Release Signal (MXO w/ K34) or Clutch Anticipate Signal (MM5 w/o K34) or Clutch Anticipate/ Cruise Control Release Signal (MM5 w/ K34)
5-6
--
--
Not Used
7
BLK
2760
Low Reference
8-10
--
--
Not Used
11
BLK
2759
Low Reference
12-14
--
--
Not Used
15
PPL
1807
Class 2 Serial Data
16
PPL
1807
Class 2 Serial Data
17-18
--
--
Not Used
19
PNK
639
Ignition 1 Voltage
20
ORN
480
Battery Positive Voltage
21
TAN
472
IAT Sensor Signal
22
PPL
1589
Fuel Level Sensor Signal
23
GRY
2700
5 V Reference A (C60)
24
--
--
Not Used
25
GRY
2709
5 V Reference A
26-33
--
--
Not Used
33
BRN/WHT
419
MIL Control
34
DK GRN/WHT
817
Vehicle Speed Signal (K34)
35-36
--
--
Not Used
37
RED/BLK
380
A/C Refrigerant Pressure Sensor Signal (C60)
38
--
--
Not Used
39
DK GRN
890
Fuel Tank Pressure Sensor Signal
40-42
--
--
Not Used
43
DK GRN
335
Cooling Fan Relay Control
44
--
--
Not Used
45
WHT
1310
EVAP Canister Vent Solenoid Control
46
DK GRN/WHT
465
Fuel Pump Relay Control
47
DK GRN/WHT
459
A/C Compressor Clutch Relay Control (C60)
48
--
--
Not Used
49
DK GRN
83
Cruise Control Inhibit Signal (K34)
50
--
--
Not Used
51
BLK
2751
Low Reference (C60)
52-56
--
--
Not Used
